ARC 3

Extreme High Performance Industrial Lighting

A range of incredibly efficient and light weight IP66, IK10 high-bay solutions available for use in a range of industrial applications. A robust and high performing solution with efficacies up to 160 lm/W and an exceptionally long rated lifetime up to 100,000 hours, thus increasing ROI and minimising maintenance cycles. As one of the lightest solutions available, Arc 3, further reduces on-site installation, shipping and handling costs. With a choice of aisle or wide beam profiles, the light is directed exactly to where it is needed, providing a highly comfortable and glare free UGR <22 environment in accordance with EN12464-1. Optional controls include PIR, Daylight sensors and DALI. Arc 3 is available in a range of lengths, wattages and beam profiles. Arc 3 is supplied as finished marine grade LM6 aluminium with a 5 year warranty. Optional accessories include adjustable surface bracket, suspension cables and diffuser baffle.

Request a call back

open all | close all

Overview

Key Benefits

Class leading UGR <22 (EN 12464-1 glare requirements for warehouses)
Optimised optics ensure light is directed where it is needed
Up to 160 lm/W efficacy & up to 100,000 hours lifetime
Lightweight design - Allows single person installation and lower shipping costs.
DALI compatible (to IEC62386-101, 102, 207) and for use with the majority of lighting control systems

Applications

Distribution
Factory
Food Production
Sports
Stadium & Arena

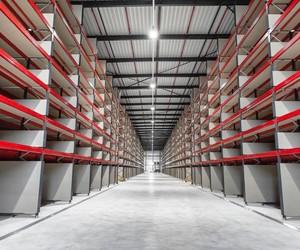

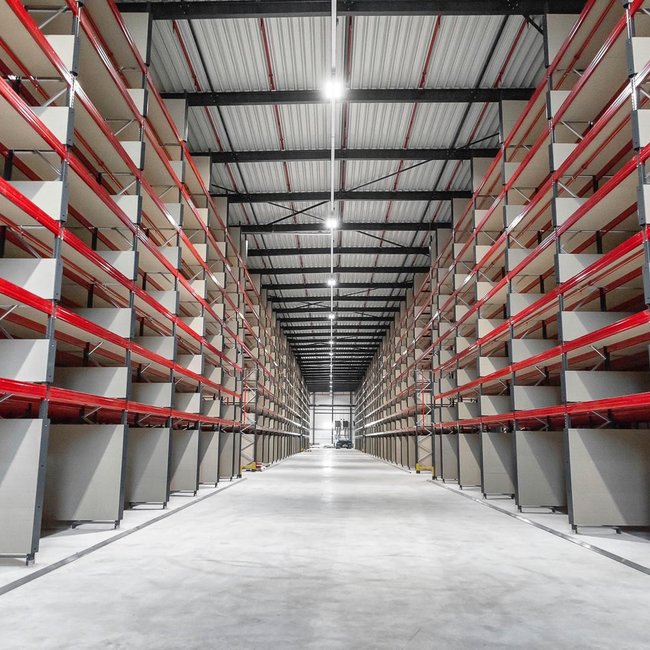

Warehouses

Availability

Call +353 21 486 7636 for more information

Specification

Performance

Colour rendering (CRI):

Colour temperature (CCT):

4000K

Electrical class:

Class I

IK rating:

IK10

IP rating:

IP66

LED quality (SDCM):

Lumen maintenance:

L80 @ 100,000 Hours

Operating temperature (C):

-40°C to +55°C

Operating voltage:

110-277 VAC

Power factor:

0.99

Rated lifetime:

100,000 Hours

Installation / Mounting

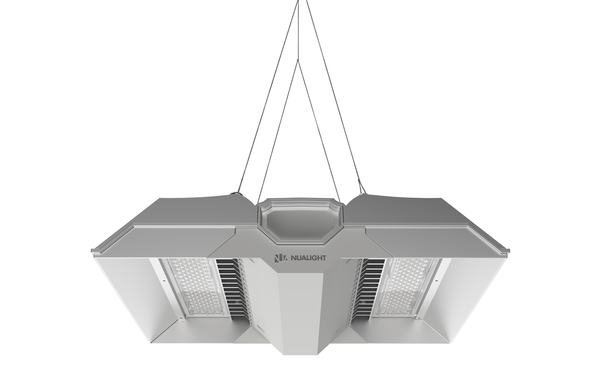

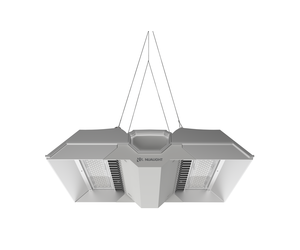

Suitable for suspended or surface mounting via optional accessories

Materials / Finish

Body: Marine grade LM6 aluminium. Lenses: Polycarbonate

Standards

EN60598-1,EN60598-2-1,EN62031,EN62471,EN61547,EN62493,EN55015,EN61000-3-2,EN61000-3-3,EN61000-4-2,EN61000-4-3,EN 62493,EN62262,EN60598-2-24

Downloads

All LDT files as Zip

All Datasheets as Zip

Family Datasheet EN

Family Datasheet DE

Declaration of Conformity

Installation Sheet

Ordering Guide

Description	Power (W)	Lumens (lm)	Efficacy (lm/w)	SKU		Datasheet
Arc 3 90W. 4000K, Wide, DALI	90	14500	160	N19400	LDT	EN - DE
Arc 3 90W. 4000K, Aisle, DALI	90	14500	160	N19401	LDT	EN - DE
Arc 3 90W. 4000K, Wide, PIR	90	14500	160	N19402	LDT	EN - DE
Arc 3 90W. 4000K, Aisle, PIR	90	14500	160	N19403	LDT	EN - DE
Arc 3 90W. 5000K, Wide, DALI	90	14500	160	N19404	LDT	EN - DE
Arc 3 90W. 5000K, Aisle, DALI	90	14500	160	N19405	LDT	EN - DE
Arc 3 90W. 5000K, Wide, PIR	90	14500	160	N19406	LDT	EN - DE
Arc 3 90W. 5000K, Aisle, PIR	90	14500	160	N19407	LDT	EN - DE
Arc 3 135W. 4000K, Wide, DALI	135	21000	155	N19408	LDT	EN - DE
Arc 3 135W. 4000K, Aisle, DALI	135	21000	155	N19409	LDT	EN - DE
Arc 3 135W. 4000K, Wide, PIR	135	21000	155	N19410	LDT	EN - DE
Arc 3 135W. 4000K, Aisle, PIR	135	21000	155	N19411	LDT	EN - DE
Arc 3 135W. 5000K, Wide, DALI	135	21000	155	N19412	LDT	EN - DE
Arc 3 135W. 5000K, Aisle, DALI	135	21000	155	N19413	LDT	EN - DE
Arc 3 135W. 5000K, Wide, PIR	135	21000	155	N19414	LDT	EN - DE
Arc 3 135W. 5000K, Aisle, PIR	135	21000	155	N19415	LDT	EN - DE
Arc 3 180W. 4000K, Wide, DALI	180	28000	155	N19416	LDT	EN - DE
Arc 3 180W. 4000K, Aisle, DALI	180	28000	155	N19417	LDT	EN - DE
Arc 3 180W. 4000K, Wide, PIR	180	28000	155	N19418	LDT	EN - DE
Arc 3 180W. 4000K, Aisle, PIR	180	28000	155	N19419	LDT	EN - DE
Arc 3 180W. 5000K, Wide, DALI	180	28000	155	N19420	LDT	EN - DE
Arc 3 180W. 5000K, Aisle, DALI	180	28000	155	N19421	LDT	EN - DE
Arc 3 180W. 5000K, Wide, PIR	180	28000	155	N19422	LDT	EN - DE
Arc 3 180W. 5000K, Aisle, PIR	180	28000	155	N19423	LDT	EN - DE
Arc 3 270W. 4000K, Wide, DALI	270	42000	155	N19424	LDT	EN - DE
Arc 3 270W. 4000K, Aisle, DALI	270	42000	155	N19425	LDT	EN - DE
Arc 3 270W. 4000K, Wide, PIR	270	42000	155	N19426	LDT	EN - DE
Arc 3 270W. 4000K, Aisle, PIR	270	42000	155	N19427	LDT	EN - DE
Arc 3 270W. 5000K, Wide, DALI	270	42000	155	N19428	LDT	EN - DE
Arc 3 270W. 5000K, Aisle, DALI	270	42000	155	N19429	LDT	EN - DE
Arc 3 270W. 5000K, Wide, PIR	270	42000	155	N19430	LDT	EN - DE
Arc 3 270W. 5000K, Aisle, PIR	270	42000	155	N19431	LDT	EN - DE
Arc 3 115W. 4000K, Wide, DALI	115	18500	160	N19452	LDT	EN - DE
Arc 3 115W. 4000K, Aisle, DALI	115	18500	160	N19453	LDT	EN - DE
Arc 3 115W. 4000K, Wide, PIR	115	18500	160	N19454	LDT	EN - DE
Arc 3 115W. 4000K, Aisle, PIR	115	18500	160	N19455	LDT	EN - DE
Arc 3 115W. 5000K, Wide, DALI	115	18500	160	N19456	LDT	EN - DE
Arc 3 115W. 5000K, Aisle, DALI	115	18500	160	N19457	LDT	EN - DE
Arc 3 115W. 5000K, Wide, PIR	115	18500	160	N19458	LDT	EN - DE
Arc 3 115W. 5000K, Aisle, PIR	115	18500	160	N19459	LDT	EN - DE
Arc 3 230W. 4000K, Wide, DALI	230	37000	160	N19460	LDT	EN - DE
Arc 3 230W. 4000K, Aisle, DALI	230	37000	160	N19461	LDT	EN - DE
Arc 3 230W. 4000K, Wide, PIR	230	37000	160	N19462	LDT	EN - DE
Arc 3 230W. 4000K, Aisle, PIR	230	37000	160	N19463	LDT	EN - DE
Arc 3 230W. 5000K, Wide, DALI	230	37000	160	N19464	LDT	EN - DE
Arc 3 230W. 5000K, Aisle, DALI	230	37000	160	N19465	LDT	EN - DE
Arc 3 230W. 5000K, Wide, PIR	230	37000	160	N19466	LDT	EN - DE
Arc 3 230W. 5000K, Aisle, PIR	230	37000	160	N19467	LDT	EN - DE

Accessories

Description	SKU	Datasheet
2 WIRE SUSPENSION KIT 3M 0.5M DIVIDE	N23127	EN - DE
ADJUSTABLE BRACKET	N23103	EN - DE
ARC 3 DIFFUSER 52mm BAFFLE	N38006-6	EN - DE
ARC PIR REMOTE	926005	EN - DE
