HELIOS

Smart, Sleek & Sophisticated

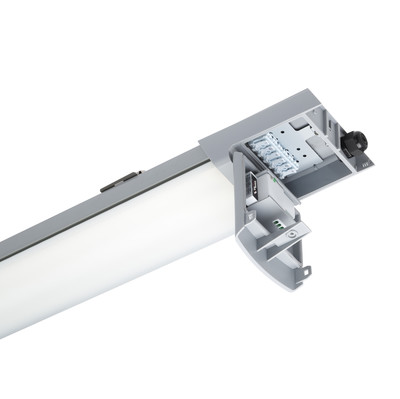

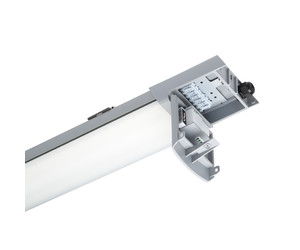

Introducing the Helios from Nualight. A range of robust IP66, IK10 impact resistant LED linear moisture / damp and dust proof luminaires suitable for tough industrial applications from manufacturing, logistics and warehouses to indoor car parks, cold stores, wash-down and service areas. Designed to “fit and forget” the Helios is a sleek and simple solution welcomed by both end users and installers. Impressively light, Helios is through-wired as standard with a simple flip down access to the connector and clip-in sturdy aluminium mounting brackets. With long lifetimes (L80 @100Khrs) Helios offers the ability to add on further accessories post-installation with minimal fuss. Clever features which come as standard such as a thermal protection circuit, low flicker, pre-fitted cable glands, analogue 1-10v dimming, self-test and separate non-maintained emitters in the emergency versions all equate to Helios being a sophisticated solution for demanding applications. An aesthetically pleasing profile means Helios is a contender for both front and back of house applications for a seamless look throughout. Helios is available with range of accessories including wireless microwave dimming sensors and DALI adaptors.

open all  |  close all
Key Benefits
  • Class leading efficiency: up to 140 lm/W
  • Industry ready: IP66, IK10, thermal protection
  • Rapid installation, through-wired as standard with flip-down access
  • Site upgradable with a choice of control & sensor options
  • Designed with low glare applications in mind
Applications
  • Circulation Space and Amenity
  • Distribution
  • Factory

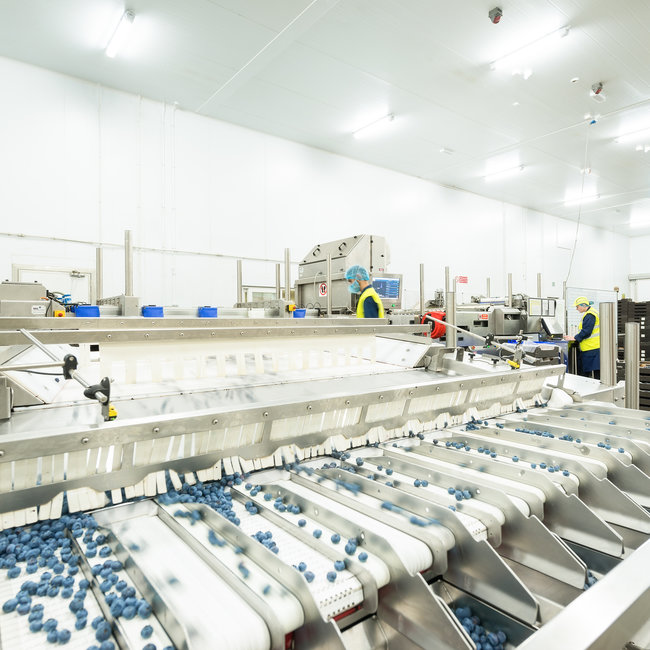

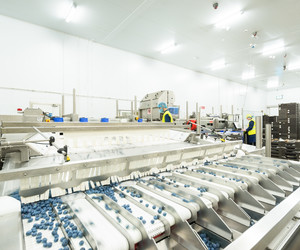

  • Food Production
  • Multi-storey Car Park
  • Warehouses
Availability

Available from stock

Performance
Colour rendering (CRI):
80
Colour temperature (CCT):
4000K
Electrical class:
Class II
IK rating:
IK10
IP rating:
IP66
LED quality (SDCM):
5
Lumen maintenance:
L80 @ 100,000 Hours
Luminaire efficacy (lm/w):
140
Operating temperature (C):
-25 to +45
Operating voltage:
110-240 VAC
Power factor:
0.95
Rated lifetime:
100,000 Hours
Installation / Mounting

Suitable for surface mounting via included fixing clips

Materials / Finish

Body: Polycarbonate - Cool Grey. Diffuser Opal/Microlinear

Standards

EN60598-1,EN60598-2-1,EN62031,EN62471,EN61547,EN55015,EN61000-3-2,EN61000-3-3,EN 62493,EN62262

CE Mark Class 2 DesignLights Consortium RoHS Compiant UL UL WEEE 5 year warranty

Ordering Guide

  Description Power (W) Lumens (lm) Efficacy (lm/w) SKU
HELIOS 1200 HE 34W 4000K 1-10V DIMMING 34 4800 140 N18508-2
HELIOS 1200 HO 50W 4000K 1-10V DIMMING 50 6500 130 N18509-2
HELIOS 1200 HE 34W 4000K 1-10V DIMMING EM SELF TEST 34 4800 140 N18510-2
HELIOS 1200 HO 50W 4000K 1-10V DIMMING EM SELF TEST 50 6500 130 N18511-2
HELIOS UL 1200 HE 34W 4000K 1-10V DIMMING 34 4800 140 N18512-2
HELIOS UL 1200 HO 50W 4000K 1-10V DIMMING 50 6500 130 N18513-2
HELIOS 1200 HE 34W 5000K 1-10V DIMMING 34 4800 140 N18516-2
HELIOS 1200 HO 50W 5000K 1-10V DIMMING 50 6500 130 N18517-2
HELIOS 1200 HE 34W 5000K 1-10V DIMMING EM SELF TEST 34 4800 140 N18518-2
HELIOS 1200 HO 50W 5000K 1-10V DIMMING EM SELF TEST 50 6500 130 N18519-2
HELIOS 1500 HO 50W 4000K 1-10V DIMMING 50 6500 130 N18551-2
HELIOS 1500 HO 50W 4000K 1-10V DIMMING EM SELF TEST 50 6500 130 N18553-2

Accessories

  Description SKU
DALI DIMMING ADAPTOR KIT N23141 EN - DE
MICROWAVE SENSOR KIT N23147 EN - DE
RF MASTER SENSOR IP65 ENCLOSURE N23153 EN - DE
RF SLAVE KIT N23143 EN - DE
