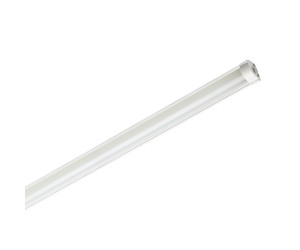

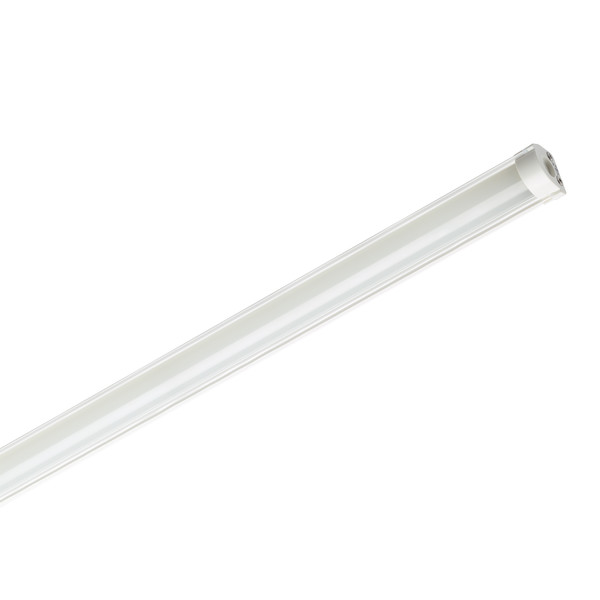

ORION HORIZONTAL

Designed to deliver.
On time. Easily integrated. Industry leading solution.

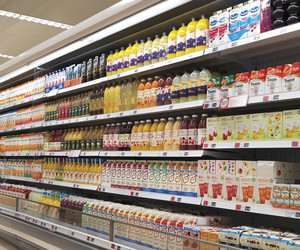

Introducing Orion from Nualight. A range of highly efficient, performance driven and cost effective horizontal and vertical LED refrigeration lighting products for refrigerated display cases chiller and freezer doors, chiller canopy and shelves available from stock with short delivery times worldwide. Designed with the latest LED technology, Orion is simple to install and maintain whilst providing visually colour rich, vibrant, high impact retail displays. With lifetime costs cheaper than conventional lighting, Orion also has industry leading lumens per watt output significantly reducing energy bills. Orion from Nualight is offered in a range of lengths, colour temperatures including Red-Tone. There is also a range of complementary cables, brackets and sleeve options, available to order separately.

Request a call back

Movie

open all | close all

Overview

Key Benefits

Fast delivery times for stocked products
Hassle free ordering through a simplified range with no need for centres, lefts, rights or ends
Ideal solution for retrofits due to a range of connection options for easy integration into any size case or application
Industry leading efficacies combined with 50,000 hour lifetimes delivers exceptionally low cost of ownership and quick paybacks
High quality CRI LED chips provide rich and uniformly lit displays, minimising any visible colour shift throughout the installations lifetime

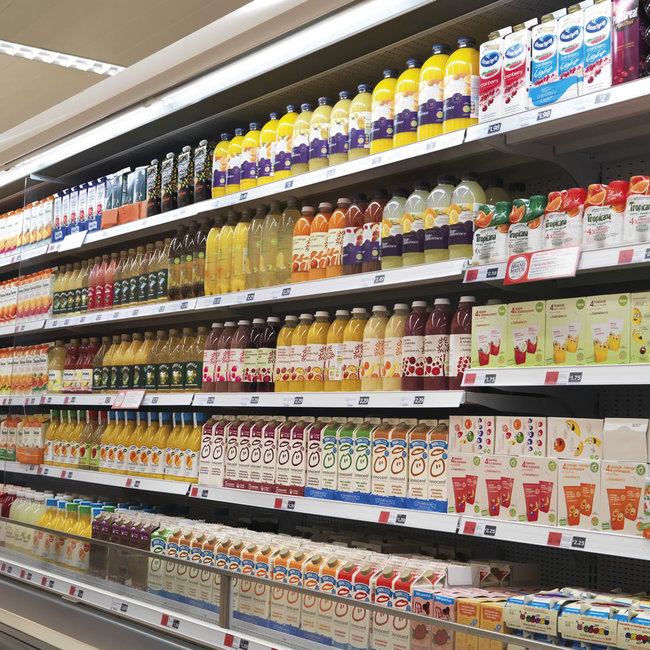

Applications

Bakery
Dairy
Drinks
Fresh Fish
Fresh Meat
Frozen
Grocery
Refrigeration

Availability

Call +353 21 486 7636 for more information

Specification

Performance

Colour rendering (CRI):

Electrical class:

Class III

IK rating:

IK08

IP rating:

IP54

LED quality (SDCM):

Operating temperature (C):

-30 to +35

Operating voltage:

24VDC

Power factor:

0.95

Rated lifetime:

50,000 Hours

Installation / Mounting

Range of complementary cables, brackets and sleeve options, are available to order separately

Materials / Finish

Range contains white RAL9016 polycarbonate extrusions with either an optical clear lens or diffuser

Standards

EN60598-1,EN60598-2-1,EN60335-2-24,EN60335-2-89,EN62031,EN62471,EN61547,EN62493,EN55015,EN61000-3-2,EN61000-3-3,EN61000-4-2,EN61000-4-3,EN61000-4-4,EN61000-4-5,EN61000-4-6,EN61000-4-8,EN61347-2-13,EN 61347-1,EN 62384

Patents

US7,513,637 B2; US7,976,181 B2; US 7,871,176 B2; EP1,828,677 B1

Learning Zone

Downloads

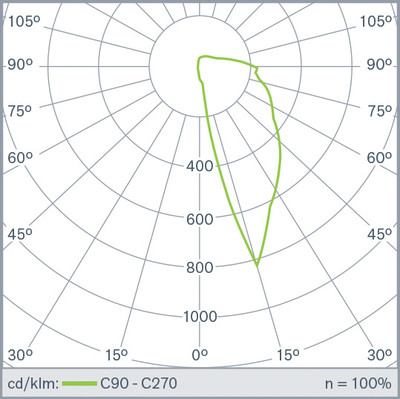

All LDT files as Zip

All Datasheets as Zip

Family Datasheet EN

Family Datasheet DE

Declaration of Conformity

Installation Sheet

Ordering Guide

Description	Power (W)	Lumens (lm)	Efficacy (lm/w)	SKU		Datasheet
ORION H CANOPY 876 3500K	12.5	1575	125	N17125-12X	LDT	EN - DE
ORION H CANOPY 1176 3500K	14	1750	125	N17126-12X	LDT	EN - DE
ORION H CANOPY 1476 3500K	18.5	2300	125	N17127-12X	LDT	EN - DE
ORION H CANOPY 1676 3500K	21	2625	125	N17128-12X	LDT	EN - DE
ORION H SHELF 876 3500K DIFFUSE	5.5	660	120	N17132-12X	LDT	EN - DE
ORION H SHELF 1176 3500K DIFFUSE	8	960	120	N17133-12X	LDT	EN - DE
ORION H SHELF 1476 3500K DIFFUSE	9.5	1140	120	N17134-12X		EN - DE
ORION H CANOPY 876 3500K HO	18.5	2225	120	N17139-12X	LDT	EN - DE
ORION H CANOPY 1176 3500K HO	23	2750	120	N17140-12X	LDT	EN - DE
ORION H CANOPY 1476 3500K HO	28	3350	120	N17141-12X	LDT	EN - DE
ORION H CANOPY 1676 3500K HO	32	3850	120	N17142-12X	LDT	EN - DE
ORION H CANOPY 876 4000K DIFFUSE	15	1500	100	N17143-12X	LDT	EN - DE
ORION H CANOPY 1176 4000K DIFFUSE	20	2000	100	N17144-12X	LDT	EN - DE
ORION H CANOPY 1476 4000K DIFFUSE	25	2500	100	N17145-12X	LDT	EN - DE
ORION H CANOPY 1676 4000K DIFFUSE	29	2900	100	N17146-12X	LDT	EN - DE
ORION H CANOPY 876 2700K	12.5	1375	110	N17730-12X	LDT	EN - DE
ORION H CANOPY 1176 2700K	14	1550	110	N17731-12X	LDT	EN - DE
ORION H CANOPY 1476 2700K	18.5	2025	110	N17732-12X	LDT	EN - DE
ORION H CANOPY 1676 2700K	21	2300	110	N17733-12X	LDT	EN - DE
ORION H CANOPY 876 4000K	12.5	1575	125	N17734-12X	LDT	EN - DE
ORION H CANOPY 1176 4000K	14	1750	125	N17735-12X	LDT	EN - DE
ORION H CANOPY 1476 4000K	18.5	2300	125	N17736-12X	LDT	EN - DE
ORION H CANOPY 1676 4000K	21	2625	125	N17737-12X	LDT	EN - DE
ORION H CANOPY 876 5000K	12.5	1550	125	N17738-12X	LDT	EN - DE
ORION H CANOPY 1176 5000K	14	1750	125	N17739-12X	LDT	EN - DE
ORION H CANOPY 1476 5000K	18.5	2300	125	N17740-12X	LDT	EN - DE
ORION H CANOPY 1676 5000K	21	2625	125	N17741-12X	LDT	EN - DE
ORION H SHELF 876 2700K DIFFUSE	5.5	625	110	N17742-12X	LDT	EN - DE
ORION H SHELF 1176 2700K DIFFUSE	8	925	110	N17743-12X	LDT	EN - DE
ORION H SHELF 1476 2700K DIFFUSE	9.5	1075	110	N17744-12X	LDT	EN - DE
ORION H SHELF 876 4000K DIFFUSE	5.5	660	120	N17745-12X	LDT	EN - DE
ORION H SHELF 1176 4000K DIFFUSE	8	960	120	N17746-12X	LDT	EN - DE
ORION H SHELF 1476 4000K DIFFUSE	9.5	1140	120	N17747-12X	LDT	EN - DE
ORION H SHELF 876 5000K DIFFUSE	5.5	675	125	N17748-12X	LDT	EN - DE
ORION H SHELF 1176 5000K DIFFUSE	8	1000	125	N17749-12X	LDT	EN - DE
ORION H SHELF 1476 5000K DIFFUSE	9.5	1200	125	N17750-12X	LDT	EN - DE
ORION H CANOPY 876 2700K HO	18.5	1950	110	N17751-12X	LDT	EN - DE
ORION H CANOPY 1176 2700K HO	23	2425	110	N17752-12X	LDT	EN - DE
ORION H CANOPY 1476 2700K HO	28	2950	110	N17753-12X	LDT	EN - DE
ORION H CANOPY 1676 2700K HO	32	3350	110	N17754-12X	LDT	EN - DE
ORION H CANOPY 876 4000K HO	18.5	2225	120	N17755-12X	LDT	EN - DE
ORION H CANOPY 1176 4000K HO	23	2750	120	N17756-12X	LDT	EN - DE
ORION H CANOPY 1476 4000K HO	28	3350	120	N17757-12X	LDT	EN - DE
ORION H CANOPY 1676 4000K HO	32	3850	120	N17758-12X	LDT	EN - DE
ORION H CANOPY 876 5000K HO	18.5	2225	120	N17759-12X	LDT	EN - DE
ORION H CANOPY 1176 5000K HO	23	2750	120	N17760-12X	LDT	EN - DE
ORION H CANOPY 1476 5000K HO	28	3350	120	N17761-12X	LDT	EN - DE
ORION H CANOPY 1676 5000K HO	32	3850	120	N17762-12X	LDT	EN - DE
ORION H CANOPY 250 2700K	3.5	375	110	N17763-12X	LDT	EN - DE
ORION H CANOPY 250 4000K	3.5	450	125	N17764-12X	LDT	EN - DE
ORION H CANOPY 250 5000K	3.5	450	125	N17765-12X	LDT	EN - DE
ORION H CANOPY 250 RT	3.5	300	85	N17766-12X	LDT	EN - DE
ORION H CANOPY 560 2700K	7	775	110	N17767-12X	LDT	EN - DE
ORION H CANOPY 560 4000K	7	875	125	N17768-12X	LDT	EN - DE
ORION H CANOPY 560 5000K	7	875	125	N17769-12X	LDT	EN - DE
ORION H CANOPY 560 RT	7	600	85	N17770-12X	LDT	EN - DE
ORION H SHELF 250 2700K DIFFUSE	1.25	135	110	N17771-12X	LDT	EN - DE
ORION H SHELF 250 4000K DIFFUSE	1.25	150	120	N17772-12X	LDT	EN - DE
ORION H SHELF 250 5000K DIFFUSE	1.25	155	125	N17773-12X	LDT	EN - DE
ORION H SHELF 250 RT DIFFUSE	1.5	105	70	N17774-12X	LDT	EN - DE
ORION H SHELF 560 2700K DIFFUSE	4	450	110	N17775-12X	LDT	EN - DE
ORION H SHELF 560 4000K DIFFUSE	4	480	120	N17776-12X	LDT	EN - DE
ORION H SHELF 560 5000K DIFFUSE	4	500	125	N17777-12X	LDT	EN - DE
ORION H SHELF 560 RT DIFFUSE	3.5	250	70	N17778-12X	LDT	EN - DE
ORION H CANOPY 250 2700K HO	5	525	110	N17779-12X	LDT	EN - DE
ORION H CANOPY 250 4000K HO	5	600	120	N17780-12X	LDT	EN - DE
ORION H CANOPY 250 5000K HO	5	600	120	N17781-12X	LDT	EN - DE
ORION H CANOPY 250 RT HO	5	425	85	N17782-12X	LDT	EN - DE
ORION H CANOPY 560 2700K HO	11	1150	110	N17783-12X	LDT	EN - DE
ORION H CANOPY 560 4000K HO	11	1325	120	N17784-12X	LDT	EN - DE
ORION H CANOPY 560 5000K HO	11	1325	120	N17785-12X	LDT	EN - DE
ORION H CANOPY 560 RT HO	11	925	85	N17786-12X	LDT	EN - DE
ORION H CANOPY 876 RT	12	1025	85	N17787-12X	LDT	EN - DE
ORION H CANOPY 1176 RT	14.5	1225	85	N17788-12X	LDT	EN - DE
ORION H CANOPY 1476 RT	19	1625	85	N17789-12X	LDT	EN - DE
ORION H CANOPY 876 RT HO	17.5	1500	85	N17790-12X	LDT	EN - DE
ORION H CANOPY 1176 RT HO	23.5	2000	85	N17791-12X	LDT	EN - DE
ORION H CANOPY 1476 RT HO	30	2550	85	N17792-12X	LDT	EN - DE
ORION H SHELF 876 RT DIFFUSE	5	350	70	N17818-12X	LDT	EN - DE
ORION H SHELF 1176 RT DIFFUSE	7.5	525	70	N17819-12X	LDT	EN - DE
ORION H SHELF 1476 RT DIFFUSE	8.5	600	70	N17820-12X	LDT	EN - DE
ORION H CANOPY 250 3500K	3.5	450	125	N17821-12X	LDT	EN - DE
ORION H CANOPY 560 3500K	7	875	125	N17822-12X	LDT	EN - DE
ORION H SHELF 250 3500K DIFFUSE	1.25	150	120	N17823-12X	LDT	EN - DE
ORION H SHELF 560 3500K DIFFUSE	4	480	120	N17824-12X	LDT	EN - DE
ORION H CANOPY 250 3500K HO	5	600	120	N17825-12X	LDT	EN - DE
ORION H CANOPY 560 3500K HO	11	1325	120	N17826-12X	LDT	EN - DE

Accessories

Description	SKU	Datasheet
PWM Dimmer 24V	N51570
ORION Fixed Bracket - 24 Pack	N43331-24	EN - DE
ORION Fixed Bracket - 500 Pack	N43331-500	EN - DE
ORION Generic Bracket 45/70Deg - 24 Pack	N43798-24	EN - DE
Power Plug 2.5m Cable - 12 Pack	N22441-2500-12	EN - DE

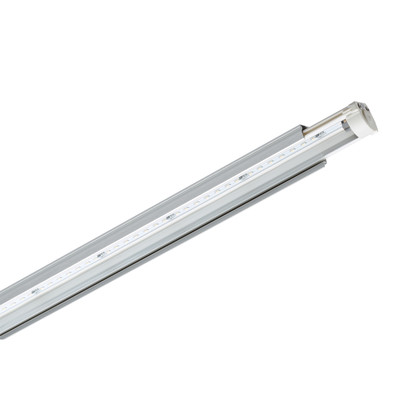

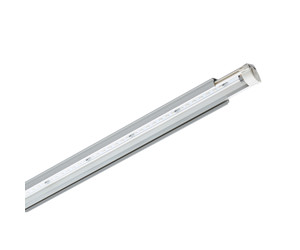

ORION H Aluminium Sleeve 1225mm - 12 Pack	N41243-1225-12	EN - DE
ORION H Aluminium Sleeve 1525mm - 12 Pack	N41243-1525-12	EN - DE
ORION H Aluminium Sleeve 1790mm - 12 Pack	N41243-1790-12	EN - DE
ORION H Aluminium Sleeve 920mm - 12 Pack	N41243-920-12	EN - DE
ORION H Extendable Bracket - 24 Pack	N43799-24	EN - DE
Power Plug P2P Connector - 12 Pack	N22439-12	EN - DE
Power Plug P2P 0.2m Cable - 12 Pack	N22440-200-12	EN - DE
Power Plug Angle 5m Cable - 12 Pack	N22482-5000-12	EN - DE
NPV-100-24 100W PSU, 24V, IP67, Metal, CB, VDE	N51057
ORION Adjustable Rotational Bracket - 24 Pack	N43332-24	EN - DE
