ORION VERTICAL

Designed to deliver.
On time. Easily integrated. Industry leading solution.

Introducing Orion from Nualight. A range of highly efficient, performance driven and cost effective horizontal and vertical LED refrigeration lighting products for refrigerated display cases chiller and freezer doors, chiller canopy and shelves available from stock with short delivery times worldwide. Designed with the latest LED technology, Orion is simple to install and maintain whilst providing visually colour rich, vibrant, high impact retail displays. With lifetime costs cheaper than conventional lighting, Orion also has industry leading lumens per watt output significantly reducing energy bills. Orion from Nualight is offered in a range of lengths, colour temperatures including Red-Tone. There is also a range of complementary cables, brackets and sleeve options, available to order separately.

Request a call back

Movie

open all | close all

Overview

Key Benefits

Fast delivery times for stocked products
Hassle free ordering through a simplified range with no need for centres, lefts, rights or ends
Ideal solution for retrofits due to a range of connection options for easy integration into any size case or application
Industry leading efficacies combined with 50,000 hour lifetimes delivers exceptionally low cost of ownership and quick paybacks
High quality CRI LED chips provide rich and uniformly lit displays, minimising any visible colour shift throughout the installations lifetime

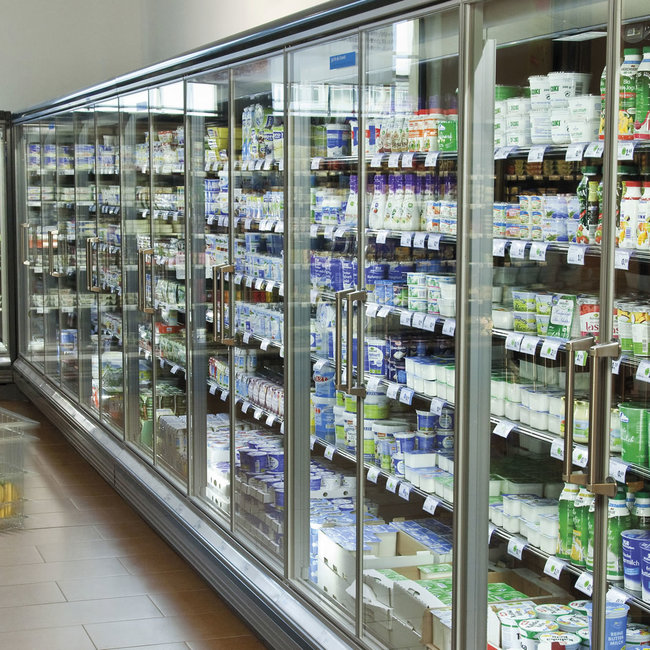

Applications

Bakery
Dairy
Drinks
Fresh Fish
Fresh Meat
Frozen
Grocery
Refrigeration

Availability

Call +353 21 486 7636 for more information

Specification

Performance

Colour rendering (CRI):

Electrical class:

Class III

IK rating:

IK08

IP rating:

IP54

LED quality (SDCM):

Operating temperature (C):

-30 to +35

Operating voltage:

24VDC

Power factor:

0.95

Rated lifetime:

50,000 Hours

Installation / Mounting

Range of complementary cables, brackets and sleeve options, are available to order separately

Materials / Finish

Range contains white RAL9016 polycarbonate extrusion with an optical clear lens

Standards

EN60598-1,EN60598-2-1,EN60335-2-24,EN60335-2-89,EN62031,EN62471,EN61547,EN62493,EN55015,EN61000-3-2,EN61000-3-3,EN61000-4-2,EN61000-4-3,EN61000-4-4,EN61000-4-5,EN61000-4-6,EN61000-4-8,EN61347-2-13,EN 61347-1,EN 62384

Patents

US7,513,637 B2; US7,976,181 B2; US 7,871,176 B2; EP1,828,677 B1

Learning Zone

Downloads

All LDT files as Zip

All Datasheets as Zip

Family Datasheet EN

Family Datasheet DE

Declaration of Conformity

Installation Sheet

Ordering Guide

Description	Power (W)	Lumens (lm)	Efficacy (lm/w)	SKU		Datasheet
ORION V FREEZER 1476 3500K	9.5	1225	130	N17113-12X	LDT	EN - DE
ORION V FREEZER 1676 3500K	10.5	1375	130	N17114-12X	LDT	EN - DE
ORION V CHILLER 876 3500K	11	1425	130	N17116-12X	LDT	EN - DE
ORION V CHILLER 1176 3500K	15	1950	130	N17117-12X	LDT	EN - DE
ORION V CHILLER 1476 3500K	19.5	2525	130	N17118-12X	LDT	EN - DE
ORION V CHILLER 1676 3500K	21.5	2800	130	N17119-12X	LDT	EN - DE
ORION V FREEZER 750 4000K	5	650	130	N17705-12X	LDT	EN - DE
ORION V FREEZER 876 4000K	6	775	130	N17706-12X	LDT	EN - DE
ORION V FREEZER 1176 4000K	8	1050	130	N17707-12X	LDT	EN - DE
ORION V FREEZER 1476 4000K	9.5	1225	130	N17708-12X	LDT	EN - DE
ORION V FREEZER 1676 4000K	10.5	1375	130	N17709-12X	LDT	EN - DE
ORION V FREEZER 750 5000K	5	650	130	N17710-12X	LDT	EN - DE
ORION V FREEZER 876 5000K	6	775	130	N17711-12X	LDT	EN - DE
ORION V FREEZER 1176 5000K	8	1050	130	N17712-12X	LDT	EN - DE
ORION V FREEZER 1476 5000K	9.5	1225	130	N17713-12X	LDT	EN - DE
ORION V FREEZER 1676 5000K	10.5	1375	130	N17714-12X	LDT	EN - DE
ORION V CHILLER 876 2700K	11	1325	120	N17715-12X	LDT	EN - DE
ORION V CHILLER 1176 2700K	15	1800	120	N17716-12X	LDT	EN - DE
ORION V CHILLER 1476 2700K	19.5	2350	120	N17717-12X	LDT	EN - DE
ORION V CHILLER 1676 2700K	21.5	2575	120	N17718-12X	LDT	EN - DE
ORION V CHILLER 1776 2700K	23.5	2825	120	N17719-12X	LDT	EN - DE
ORION V CHILLER 876 4000K	11	1425	130	N17720-12X	LDT	EN - DE
ORION V CHILLER 1176 4000K	15	1950	130	N17721-12X	LDT	EN - DE
ORION V CHILLER 1476 4000K	19.5	2525	130	N17722-12X	LDT	EN - DE
ORION V CHILLER 1676 4000K	21.5	2800	130	N17723-12X	LDT	EN - DE
ORION V CHILLER 1776 4000K	23.5	3050	130	N17724-12X	LDT	EN - DE
ORION V CHILLER 876 5000K	11	1425	130	N17725-12X	LDT	EN - DE
ORION V CHILLER 1176 5000K	15	1950	130	N17726-12X	LDT	EN - DE
ORION V CHILLER 1476 5000K	19.5	2525	130	N17727-12X	LDT	EN - DE
ORION V CHILLER 1676 5000K	21.5	2800	130	N17728-12X	LDT	EN - DE
ORION V CHILLER 1776 5000K	23.5	3050	130	N17729-12X	LDT	EN - DE
ORION V CHILLER 876 RT	6	650	110	N17793-12X	LDT	EN - DE
ORION V CHILLER 1176 RT	9	1000	110	N17794-12X	LDT	EN - DE
ORION V CHILLER 1476 RT	10	1100	110	N17795-12X	LDT	EN - DE
ORION V CHILLER 650 2700K	8	950	120	N17796-12X	LDT	EN - DE
ORION V CHILLER 650 4000K	8	1050	130	N17797-12X	LDT	EN - DE
ORION V CHILLER 650 5000K	8	1050	130	N17798-12X	LDT	EN - DE
ORION V FREEZER 1776 4000K	11	1425	130	N17832-12X		EN - DE

Accessories

Description	SKU	Datasheet
PWM Dimmer 24V	N51570
ORION Fixed Bracket - 24 Pack	N43331-24	EN - DE
ORION Fixed Bracket - 500 Pack	N43331-500	EN - DE
Power Plug 2.5m Cable - 12 Pack	N22441-2500-12	EN - DE
Power Plug Angle 5m Cable - 12 Pack	N22482-5000-12	EN - DE
NPV-100-24 100W PSU, 24V, IP67, Metal, CB, VDE	N51057
